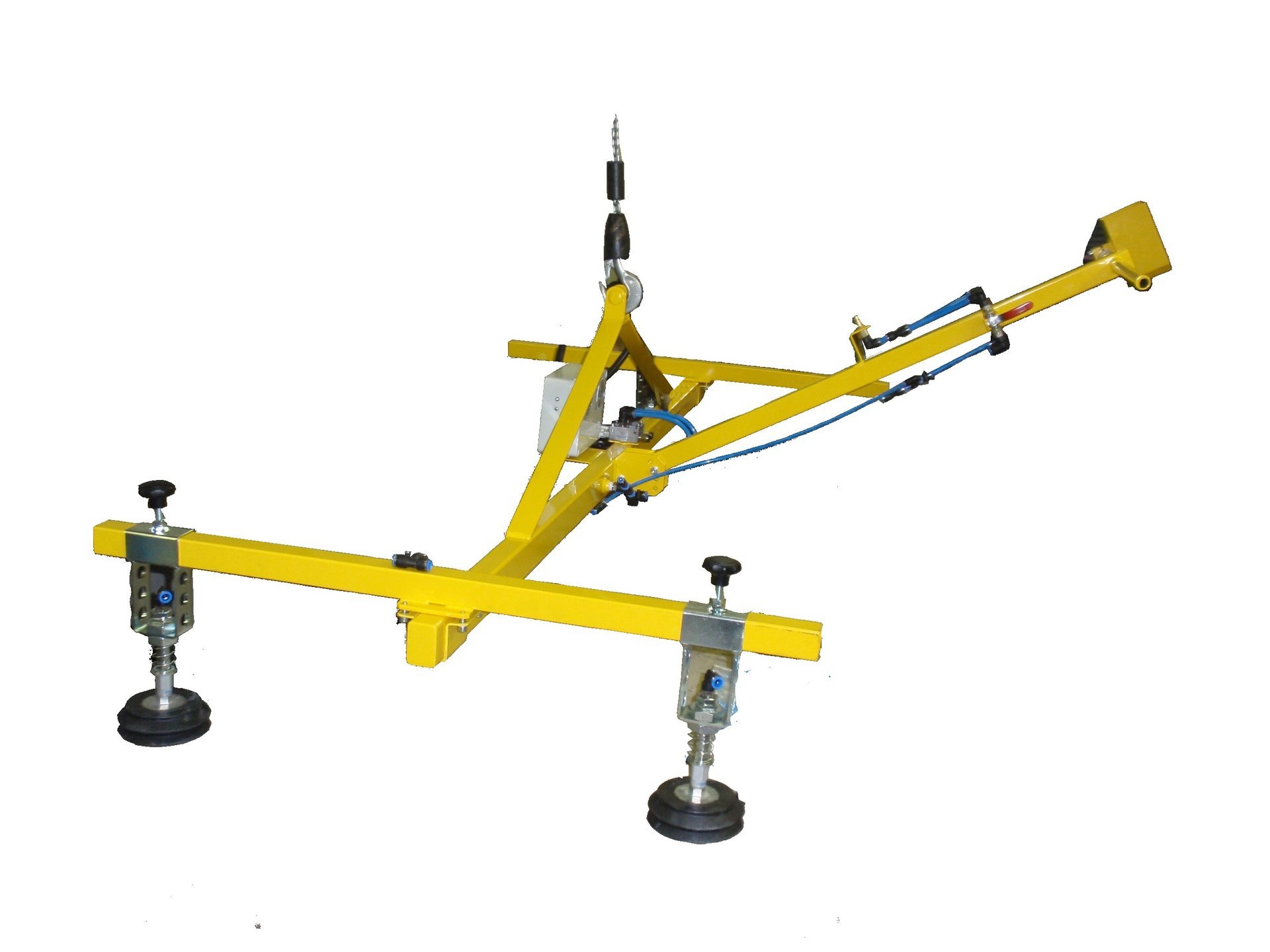

Frame with vacuum suction pads VZR

Utilization:

Frame with suction heads VZR is a technological device allowing manipulation with sheets and desks with weight up to 1250 kg in the workspace given by the reach range of the manipulator or a crane on which it's hung.

Technical description of the basic version:

It's made for manipulation in cooperation with a manipulator or a crane, on which it's hung. The carrying construction is designed as a welded and screwed frame, to which the suction heads on universal spring hinges are attached as well as the vacuum pump, the suction force signaling device and the handle with controls. The frame construction easily allows the re-arrangement of the suction heads. The middle part of the frame is airtight welded and serves as balanced vacuum storage.
Behind vaccum pump is reverse valve which would be closed in case of an interruption of the vacuum delivery. The loosening of the suction heads force is done by the air outlet tap that is placed on the handlebars. The vacuum-meter mounted on the main vacuum circuit shows the vacuum level. There is also the electronic vacuum sensor that monitors the underpressure. In case of the underpressure drops below 0.6 bar the sound signal is activated. The required level of the underpressure can be changed by program.
